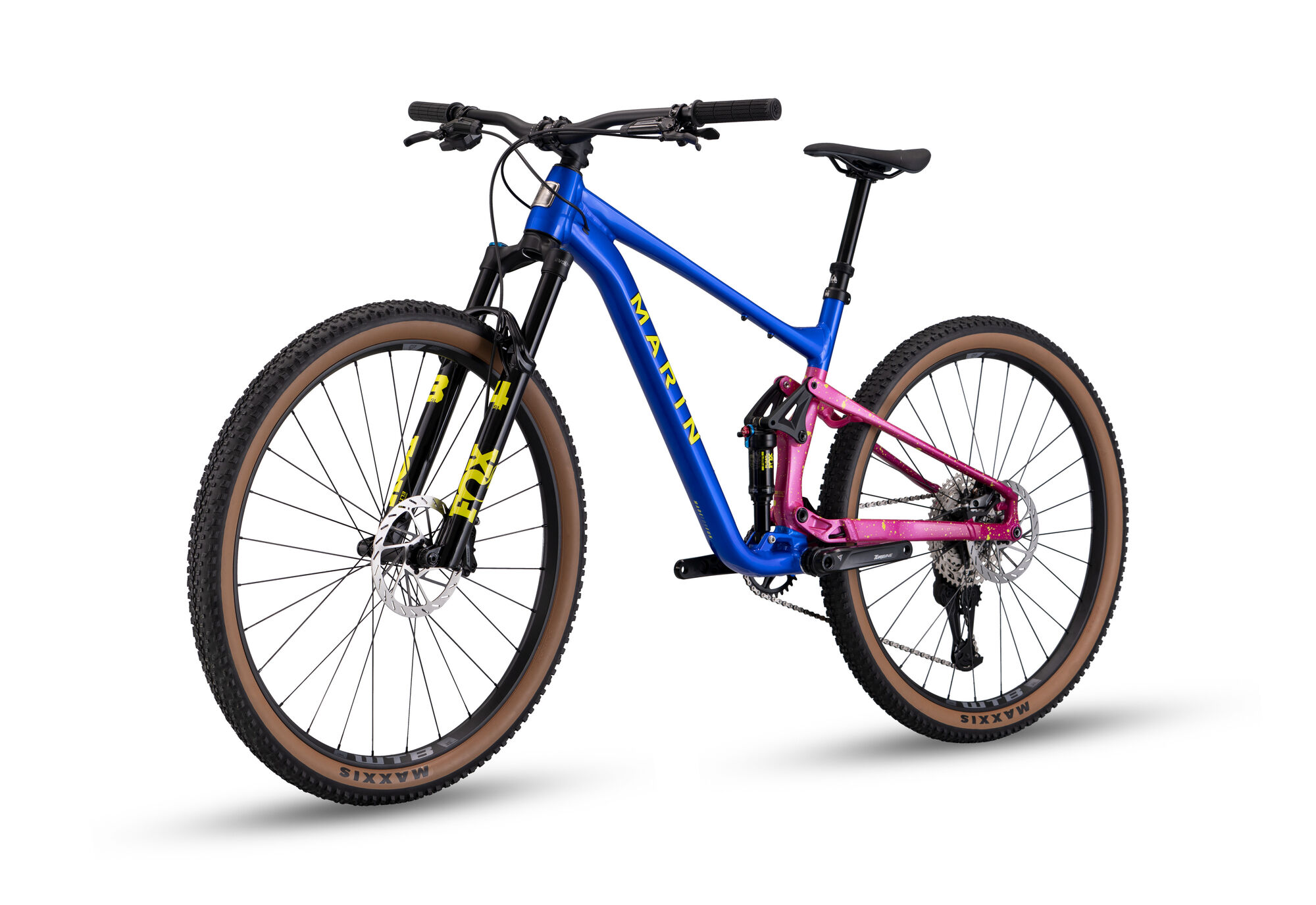

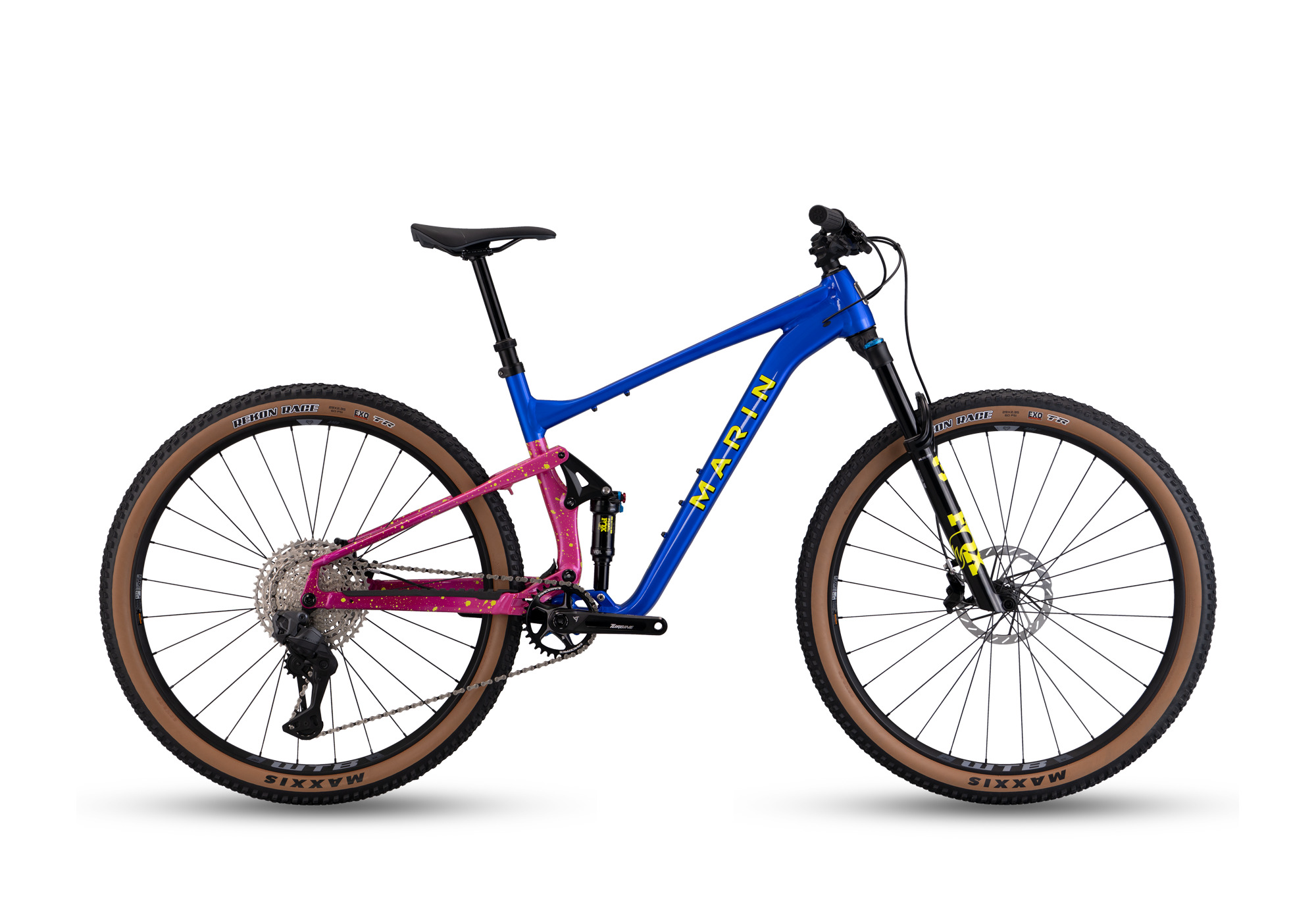

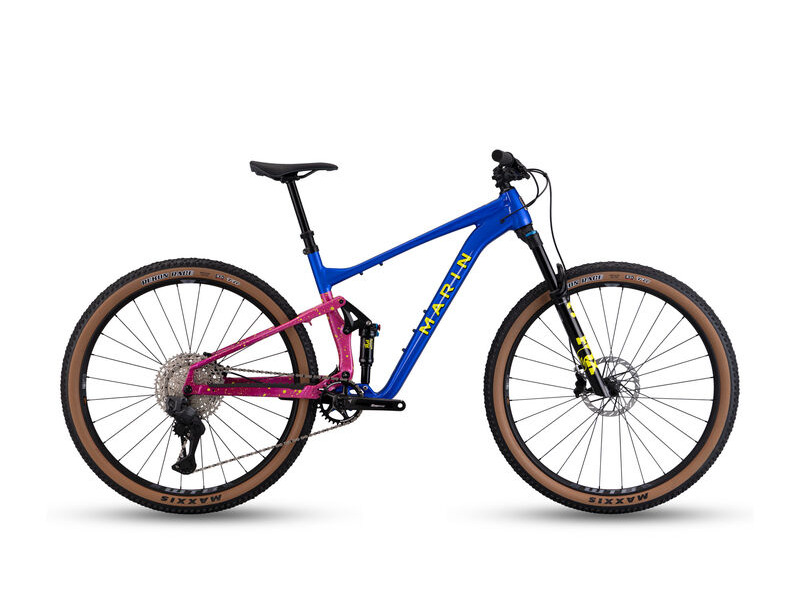

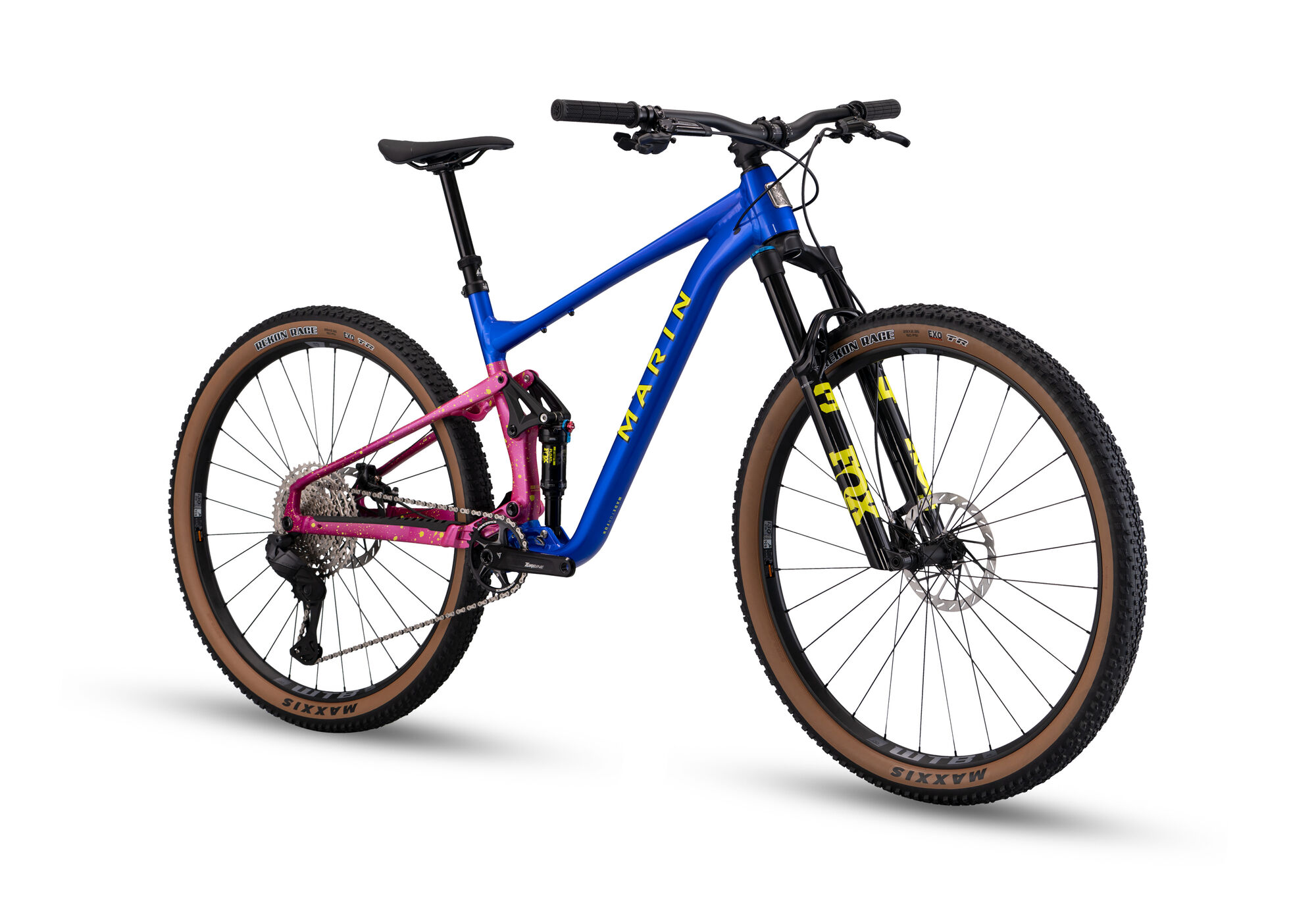

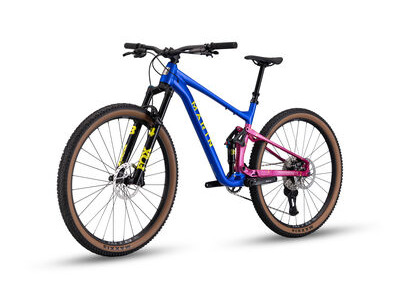

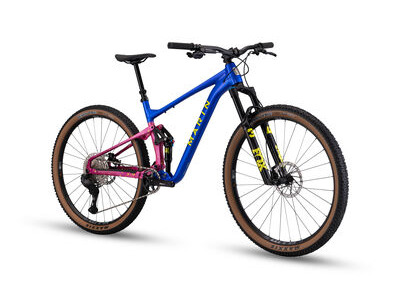

Marin Bikes TAM XR BLUE PINK 2026

Pricing
£4299.00
**Ordered Upon Request**
Finance* from £105.67 per month

*subject to status, minimum spend applies

See info below
Cycle 2 work Discounted Bikes
How long will delivery take
How To Assemble Your New Bike
Discount Code
Specifications
Price Match
Click & Collect
Size Guides
Model Year 2026
Options S BLUE PINK Out of Stock
M BLUE PINK Out of Stock
L BLUE PINK Out of Stock
XL BLUE PINK Low Stock To Order
Style Mountain bikes in the truest sense of the words - Marin got its start making XC bikes back in 1986, and we've been innovating ever since.
The range-topping TAM XR unleashes full party mode.

Its Series 4 Aluminum frame and 120mm of XC-tuned IsoTrac suspension absolutely rip rough terrain. Fox's uncompromising Performance Elite 34 SL fork and custom-tuned Float SL shock pair with Shimano's wireless Deore Di2 drivetrain for the biggest adventures and widest smiles.

The confidence-boosting 65-degree head angle keeps you in control and hungry for more - crush local XC laps, tackle epic rides, or just shred for the joy of it.
Frame All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs
Rear Shock Fox Float SL Performance, 3-Pos Compresion Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune
Forks Fox 34SL Performance Elite, 130mm Travel, Grip X Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset
Rear Derailleur Shimano Deore Di2, 12-Speed, SGS
Shifters Shimano Deore Di2, 12-Speed
Chainset Race Face AFfect, 32T Steel Ring, 24mm Spindle, 170mm, 55.5mm CL
Bottom Bracket Race Face BSA Threaded 68/73
Chain KMC X-12 Silver and Black
Freewheel Shimano, Deore 12-Speed, 10-51T
Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Stem Marin 3D Forged Alloy, 55mm

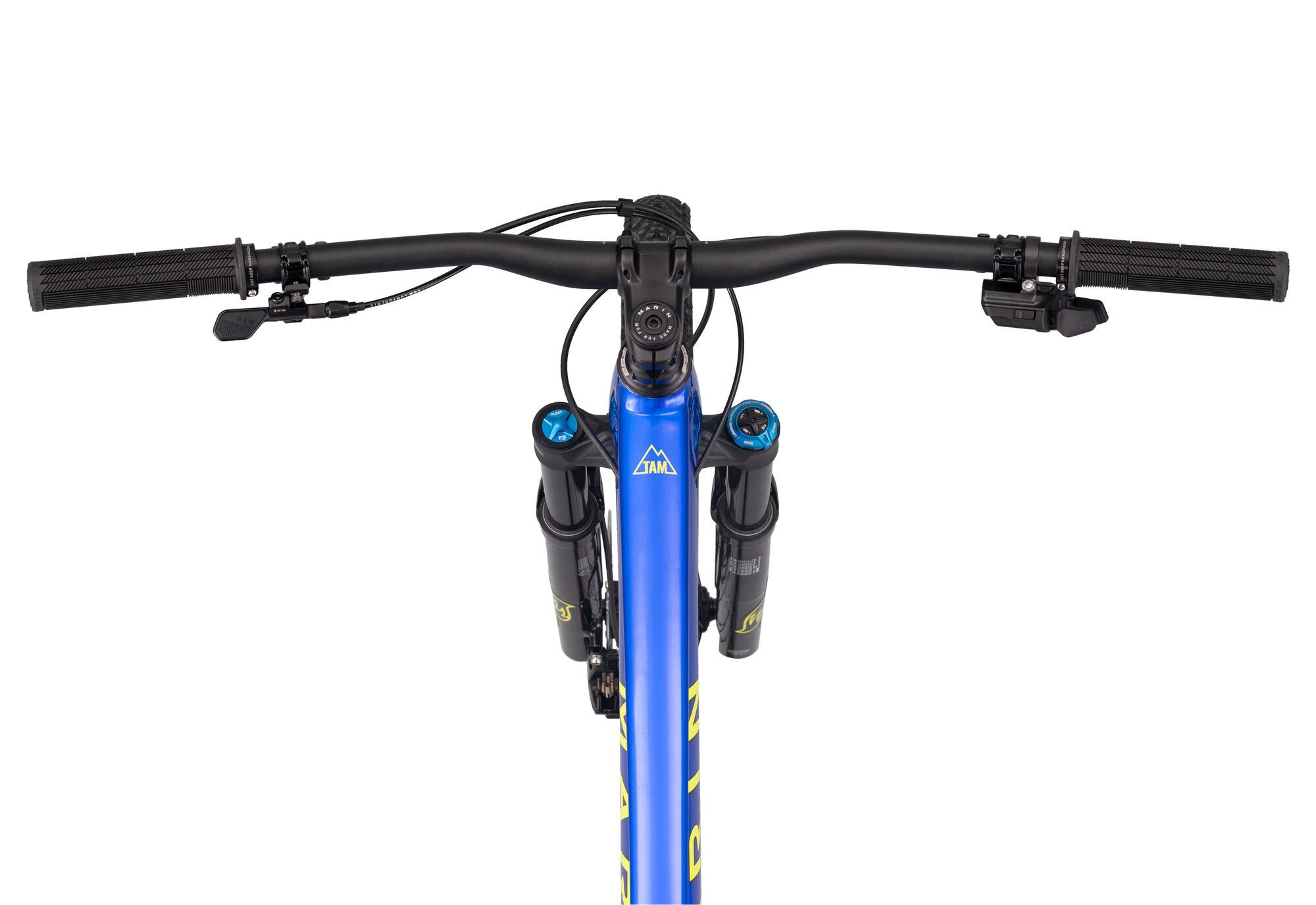

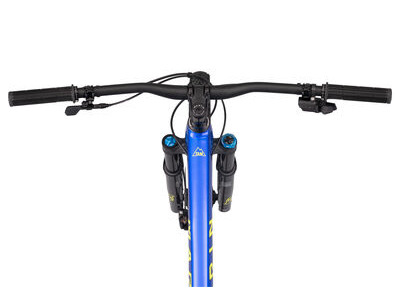

Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back
Front Brake SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor
Rear Brake SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor
Brake Levers SRAM Motiv Silver
Rims WTB KOM Light i30, 28H
Front Hub WTB X7, 110x15, Staright Pull, 28H, 6-Bolt Disc
Rear Hub WTB X7, 148x12, Staright Pull, 28H, 6-Bolt Disc , MicroSpline FH
Spokes 14g Black Stainless Steel
Tyres Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready
Saddle Marin Speed Concept
Seatpost PNW Loam Dropper Post Gen 2+, Range Lever MMX Clamp, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM
Grips Marin Grizzly Lock-On
