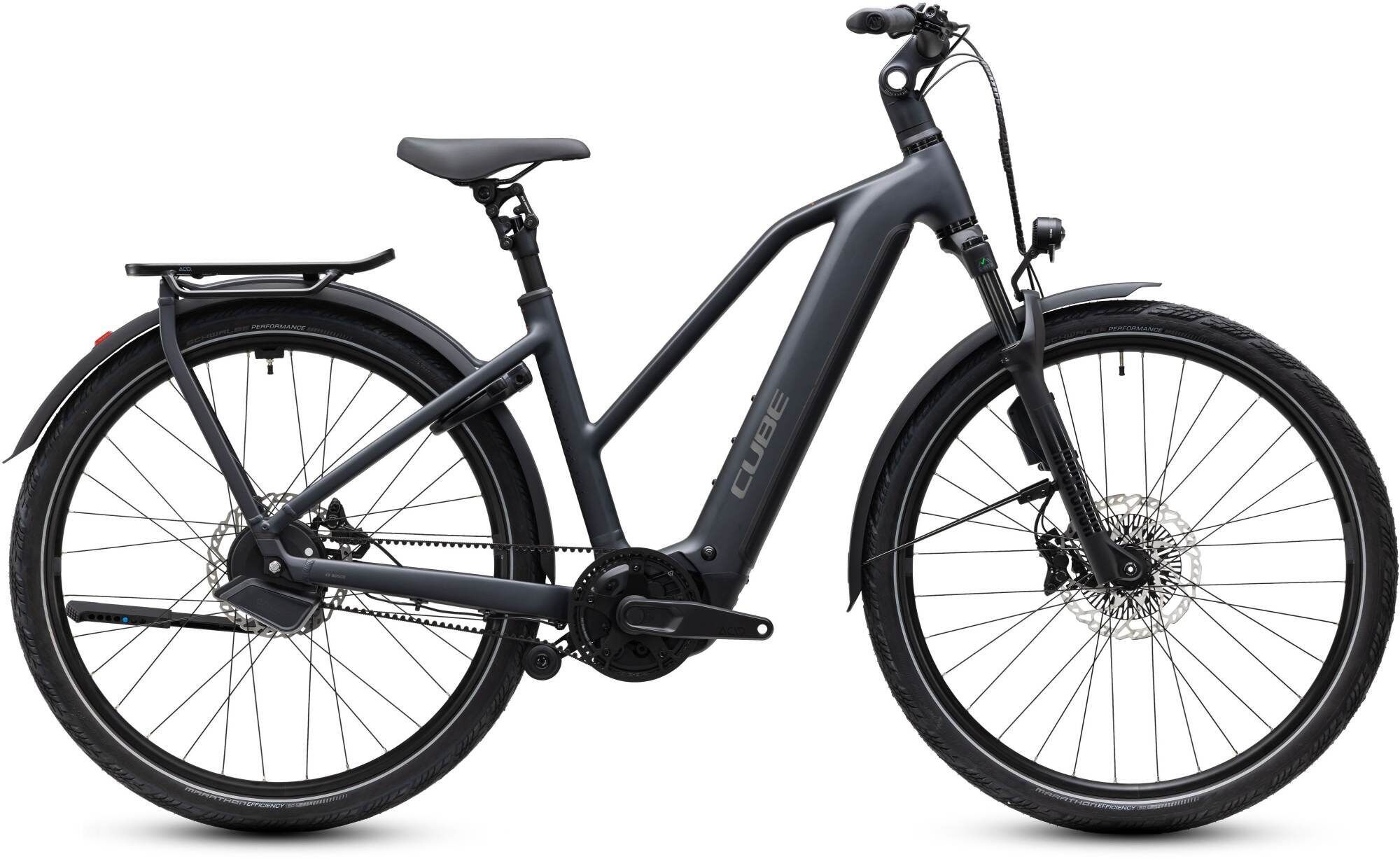

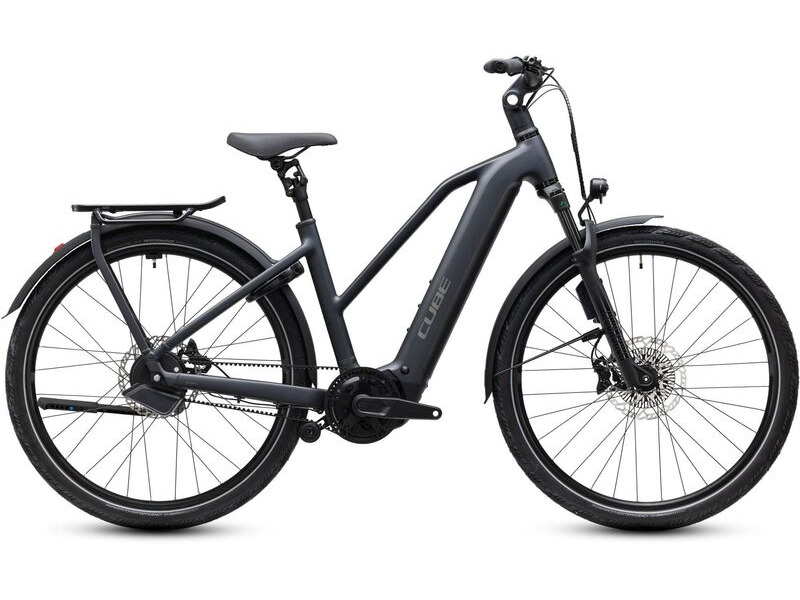

Cube Bikes Kathmandu Hybrid Deluxe Exc 800 Stealthgrey/grey 2027
Pricing
Finance* from £98.30 per month*subject to status, minimum spend applies
See info below
- Cycle 2 work Discounted Bikes
- How long will delivery take
- How To Assemble Your New Bike
- Discount Code
| Model Year | 2027 |
|---|---|
| Options | T 46 CM stealthgrey / grey Out of Stock T 50 CM stealthgrey / grey Out of Stock T 54 CM stealthgrey / grey Out of Stock T 58 CM stealthgrey / grey Out of Stock |
| Style | The Kathmandu Hybrid Deluxe EXC from CUBE is the answer to a simple question: how could we make a bike as easy as possible to live with? The sturdy Integrated Carrier 3.0 full set of practical accessories and rugged elegant frame are just the start. There's an 800Wh battery and powerful Bosch CX drive plus Kiox 500 display... and we coupled it to automatic hub gears with a quiet and clean belt drive so all you need to do is turn the pedals. Then we added an anti-lock brake system to the powerful Shimano hydraulic disc brakes for safe stopping in any conditions. And a comfortable RockShox air suspension fork for a smoother ride. Because sometimes the simplest solutions are the best. You'll instantly recognise the timelessly elegant design of CUBE's Kathmandu Hybrid... and it's also stuffed full of cutting-edge innovation. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm-travel suspension fork for better control even when the going gets rough. Internal Cable Routing complements the frame's clean lines. And of course there's an integrated chain guard mount and our rugged sturdy and exceptionally neat Integrated Carrier 3.0 so you can carry everything you need for your adventures. |
| Frame | Aluminium Superlite Gravity Casting Technology Efficient Comfort Geometry Fully Integrated Battery IC 3.0 Advanced Internal Cable Routing Integrated Seatclamp |
| Forks | RockShox Recon Silver RL Air Tapered 15x110mm 100mm |
| Chainset | ACID MTB Hybrid Pro 40T |
| Freewheel | Gates Rear Sprocket E9 CDX 24T |
| Headset | ACROS AZF-1035 ICR (Integrated Cable Routing) Top Zero-Stack 1 1/2" (ZS 56mm) Bottom Zero-Stack 1 1/2" (ZS 56mm) HIC |
| Stem | CUBE Comfort Stem Pro 35mm Adjustable |
| Handlebars | CUBE Comfort Trail Bar HD 720mm |
| Front Hub | ACID SLX 15mm Boost 6-Bolt |
| Rear Hub | Enviolo Trekking Automatiq 380% 6-Bolt 135mm |
| Tyres | Schwalbe Marathon Efficiency Performance 55-622 |
| Saddle | ACID Sequence 180 Pro Plus Ultra Gel |
| Seatpost | SR Suntour NVX 31.6mm |
| Pedals | ACID PP Trekking |
| Grips | ACID Travel Comfort |
| Miscellaneous | Front light: ACID Front Light PRO-E 150 X-Connect 12V DC Rear light: ACID Mudguard Rear Light PRO-E 12V DC Kickstand: ACID FM Pure Silent Mudguard: ACID 65 Integrated Carrier 3.0 Bell: Ring Bell Carrier: ACID Integrated Carrier 3.0 CSR CUBE Adapter Compatible |
| Brakes | Shimano BR-MT420 ABS Hydr. Disc Brake (203/203) (203/203) |
| Motor | Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Display | Bosch Kiox 500 Remote: Bosch LED Remote |
