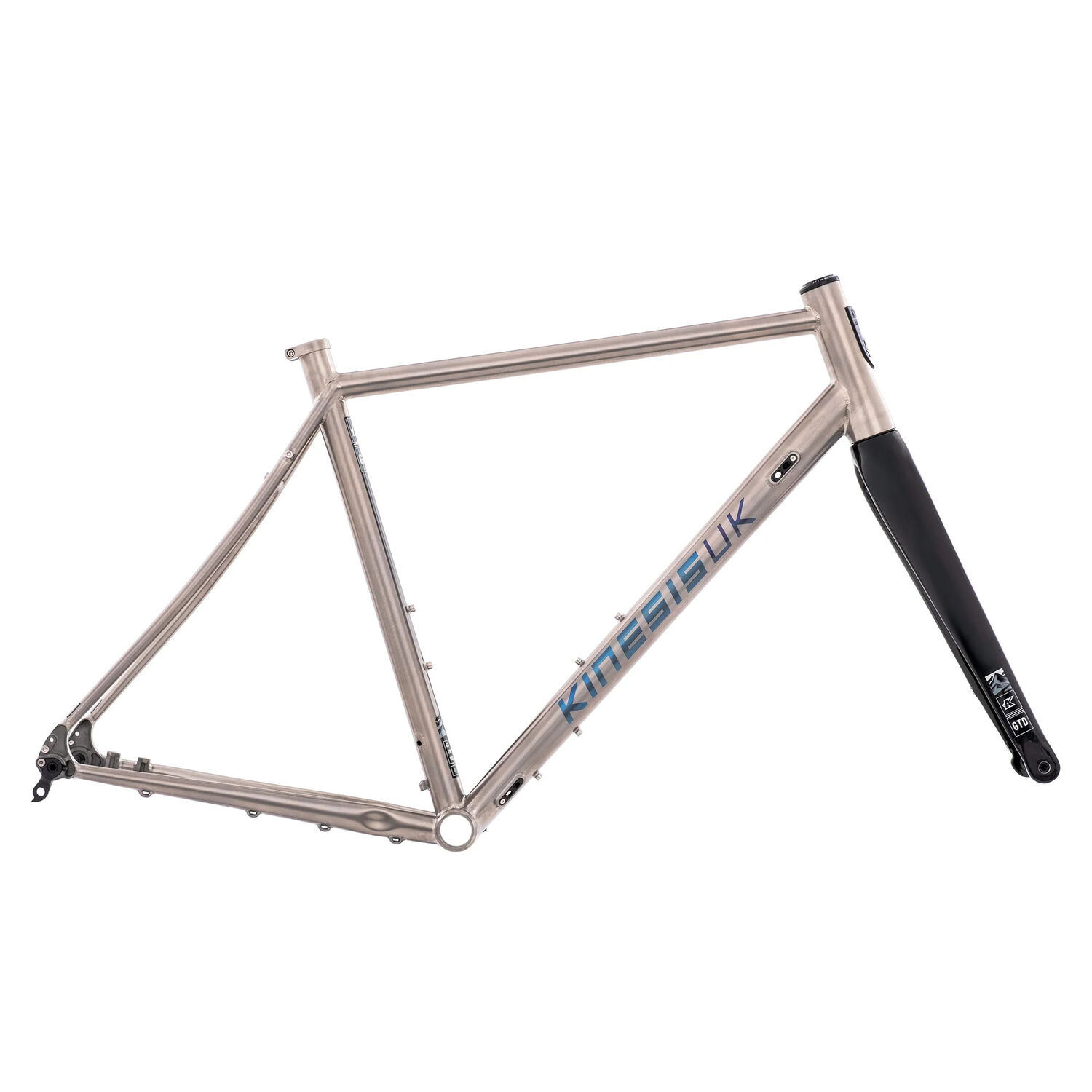

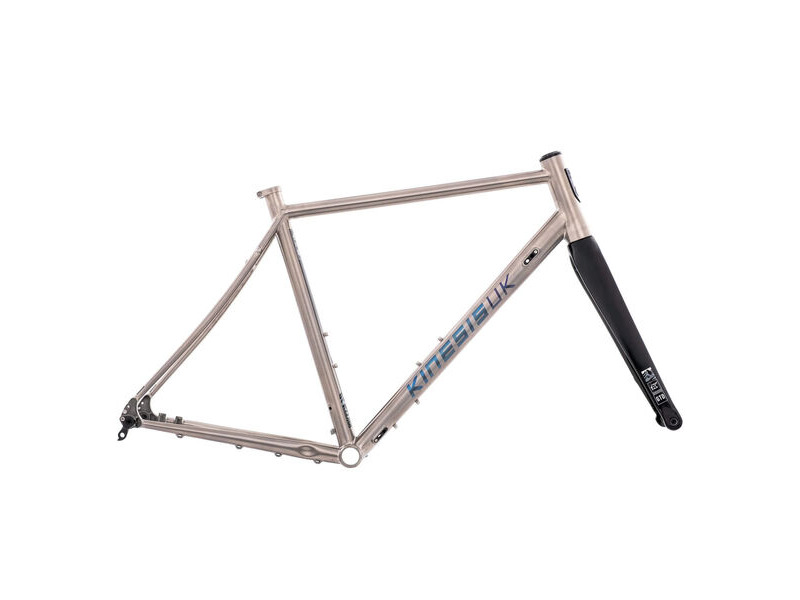

Kinesis Bikes Frameset - GTD v2

Pricing
£2400.00
**Ordered Upon Request**
Finance* from £103.68 per month

*subject to status, minimum spend applies

See info below
Cycle 2 work Discounted Bikes
How long will delivery take
How To Assemble Your New Bike
Discount Code
Specifications
Finance
Price Match
Click & Collect
Size Guides
Options 48cm Silver Low Stock To Order
50cm Silver Low Stock To Order
52cm Silver Low Stock To Order
54cm Silver In Stock To Order
56cm Silver In Stock To Order
58cm Silver Low Stock To Order
60cm Silver Low Stock To Order
Description TW
  • NEW Rider Fit GeometryRedistributed sizing based around Stack and Reach measurements, with semi sloping frame on the smallest frames. This not only reduces the stand over height but also brings comfort in line with our larger models.

    NEW Carbon ForkIncreased tyre, mudguard clearance and mounting point for a dynamo lamp.

    NEW Revised BB ShellIncreased internal space to allow the use of 30mm axle cranks with Di2 internal routing.


    NEW Improved Cable RoutingProvisions for full gear outer cable from the shifter to the rear derailleur. This protects against water and dirt ingress, preserving shifting performance for longer.

    Curved seat stays
    Maximises rear end compliance for vibration damping, whilst the straight chain stays stiffen the frame laterally for maximum power transfer.

    12mm Thru Axle Front and Rear
    Industry standard for maximum wheel security and bike stiffness. With a removable GW Switch Lever, giving a clean, elegant look.

    Adaptable Cable Ports
    Versatility with set up choice for any major groupset.

    Abundance of mounts
    Bottle mounts, rack mounts, mudguard mounts, for versatile all seasons riding.

    Thru Axle Located Derailleur Hanger
    Thru Axle locates through the hanger for maximum hanger rigidity, with no negative effect on deformation during impact.

    Custom CNC dropouts
    With discreet Di2 routing.
Our flagship titanium road frameset is back, with a host of refinements for an even more unforgettable ride. No matter whether you are doing endurance races, century rides, or commuting in style, the GTD delivers pure riding joy on every single ride. The GTD comes equipped for all conditions riding, because we believe the sublime ride of titanium shouldn't be reserved for summer Sundays.
• Custom drawn 3Al 2.5v titanium tubing.
• Kinesis carbon monocoque disc tapered fork.
• Flat mount specific calliper mounts.
• GW Tapered headset with ACB Bearings.
• 142x12mm Thru Axle rear spacing.
• 100x12mm Thru Axle front fork.
• GW 'Switch Lever' axles front and rear.
• Clearance for up to 34mm tyres.
• Clearance for up to 30mm tyres with guards.
• Compatible with Mechanical and Di2 systems (1x and 2x).
• Two bottle cage mounts.
• Mudguard and rack mounts.
• 34.9mm Front Mech clamp size.
• 68mm threaded Bottom Bracket.
• 31.6mm Seatpost required.
• 32mm long flat mount disc brake bolts required for the frame.
• Brushed natural Titanium with laser etched Downtube.
• Available in 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
• Frame supplied with fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides.
• 5 years warranty (original owner, see warranty information).

Frame Weight:
XXS (48cm ) - 1.63kg.
XS (50cm) - 1.66kg.
SM (52cm) - 1.70kg.
MD (54cm) - 1.74kg.
LG (56cm) - 1.79kg.
XL (58cm) - 1.84kg.
XXL (60cm) - 1.89kg.
